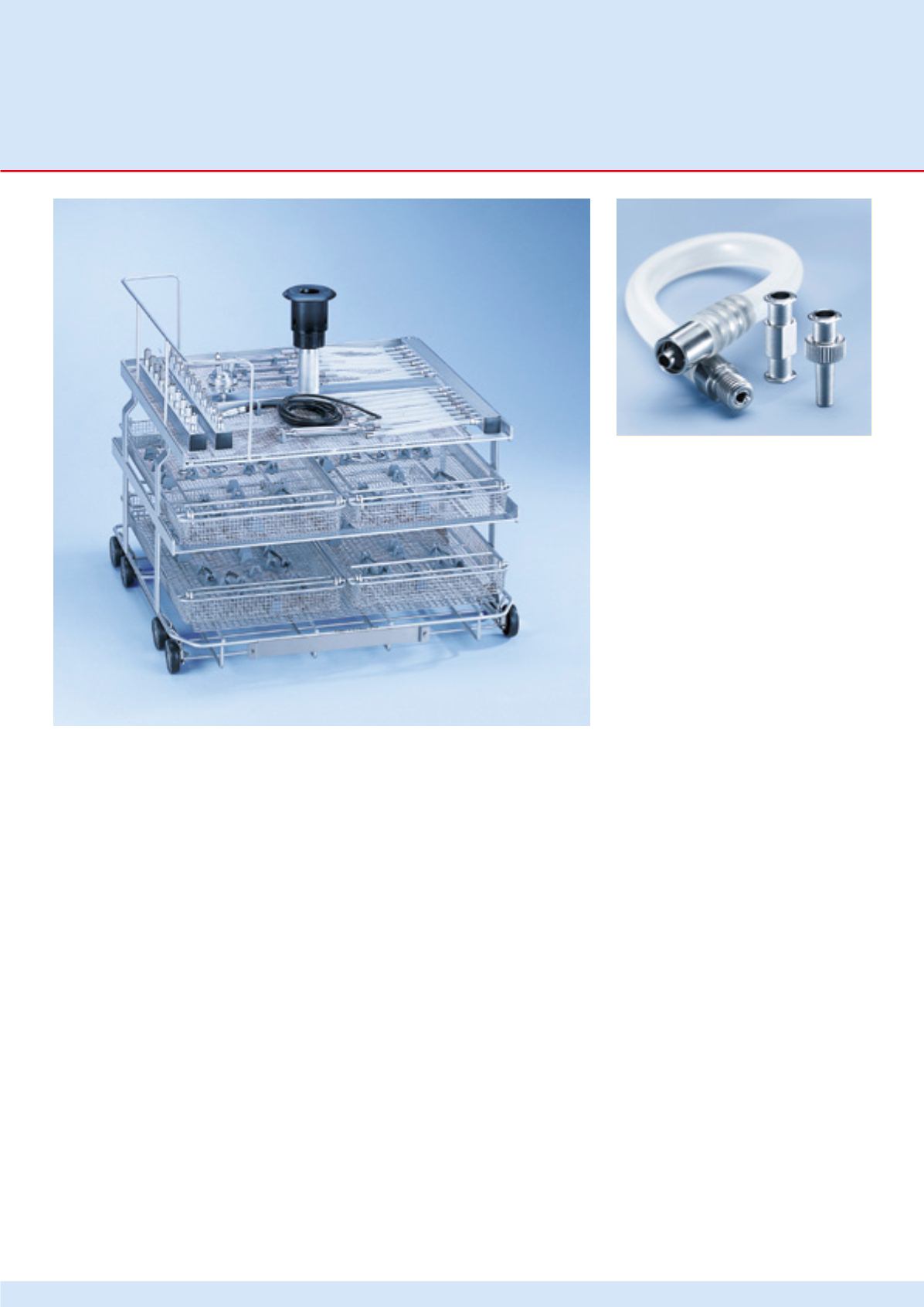

E 440/3 mobile injector unit
For use on PG 8536
• For ophthalmological/micro-instruments
• For 4 OP sets
• Built-in spray arm
• Loading on 3 levels
• Levels 1 and 2: For inserts, (e.g. E 441/1)
or E 142
• Level 3: left-hand side:
20 connectors for lumened instruments
(10 LuerLock adapters, male,
10 LuerLock adapters, female),
connection for E 478 is on feed pipe
• Level 3, right-hand side:
16 LuerLock adapters, male, with
horizontal hose arrangement
•With holder for ML/2 magnetic strip for
automatic mobile unit recognition
• Clearances from bottom:
Level 1: 115 mm
Level 2: 86 mm
Level 3: approx. 110 mm from top of
threaded sleeve
Adapters available individually:
• Pack of 4 x E 790
LuerLock female/female
• Pack of 4 x E 791
LuerLock female/male
• Pack of 4 x E 792
LuerLock male with silicone hose
(160 mm)
For ophthalmological micro-instruments
E 792
LuerLock connector, male with silicone
hose
E 790
Connector
LuerLock adapters, female/female
E 791
Connector
LuerLock female/male
Supplied as standard with:
• 1 bag E 476 (50 off) and
• E 477 bag (20 off)
• 8 x E 790 adapters LuerLock female/
female
• 8 x E 791 adapters, LuerLock female/
male
