37

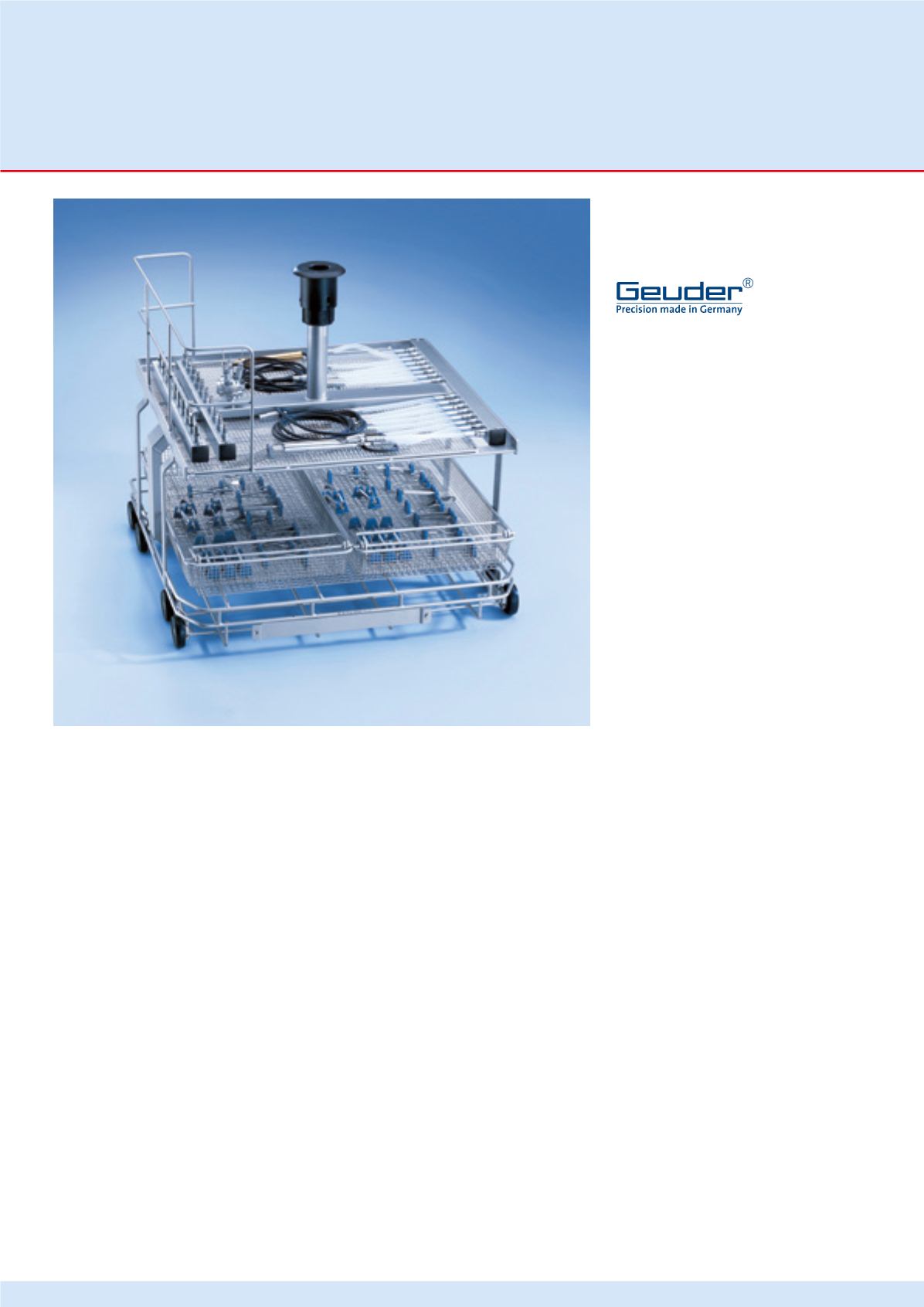

E 429/1 mobile injector unit
For use in PG 8535
• For ophthalmological/micro-instruments
• For 2-4 OP sets
• Built-in spray arm
• Loading on 2 levels
• Vertical clearances from bottom:
Level 1: 125 mm
Level 2: approx. 150 mm from top of
threaded bush
• Level 1:
For inserts (e.g. E 441/1 or E 142)
• Level 2: left-hand side:
20 connectors for lumened instruments
(10 LuerLock adapters, male,
10 LuerLock adapters, female),
connection for E 478 is on feed pipe
• Level 2, right-hand side:
16 LuerLock adapters, male, with
horizontal hose
•With holder for ML/2 magnetic strip for
automatic mobile unit recognition
Supplied as standard with:
• 1 bag E 476 (50 off) and
• 1 bag E 477 (20 off)
• 8 x E 790 adapters LuerLock female/
female
• 8 x E 791 adapters, LuerLock female/
male
Note:
The E 429/1 requires a second feed pipe
from the bottom, hence the bottom spray
arm in the machine must be removed.
For ophthalmological micro-instruments
Geuder AG recommends that their current
range of instruments be reprocessed in a
Miele washer-disinfector.
