E 450/1 mobile injector unit with drying
connection
For use in PG 8535, PG 8536
• For MIS instruments,
max. length 550 mm
• E 451 mesh tray for sundry small items
• Loading on 2 levels
• Dimensions/clearance from bottom level
upwards:
Level 1 = H 110, W 480,
D 500 mm (for inserts, e.g. 2 x E 457)
• Level 2 = H 360, W 350, D 200 mm
• Applications
E 451 mesh tray for small items
E 457 insert for separable MIS
instruments
E 460 insert for rigid fibre optics
E 473 mesh tray for small items
E 444 spiral rack for lightguide and
irrigation hoses
• Connection for hot-air drying unit
•With holder for ML/2 magnetic strip for
automatic mobile unit recognition
• H 502, W 535, D 515 mm

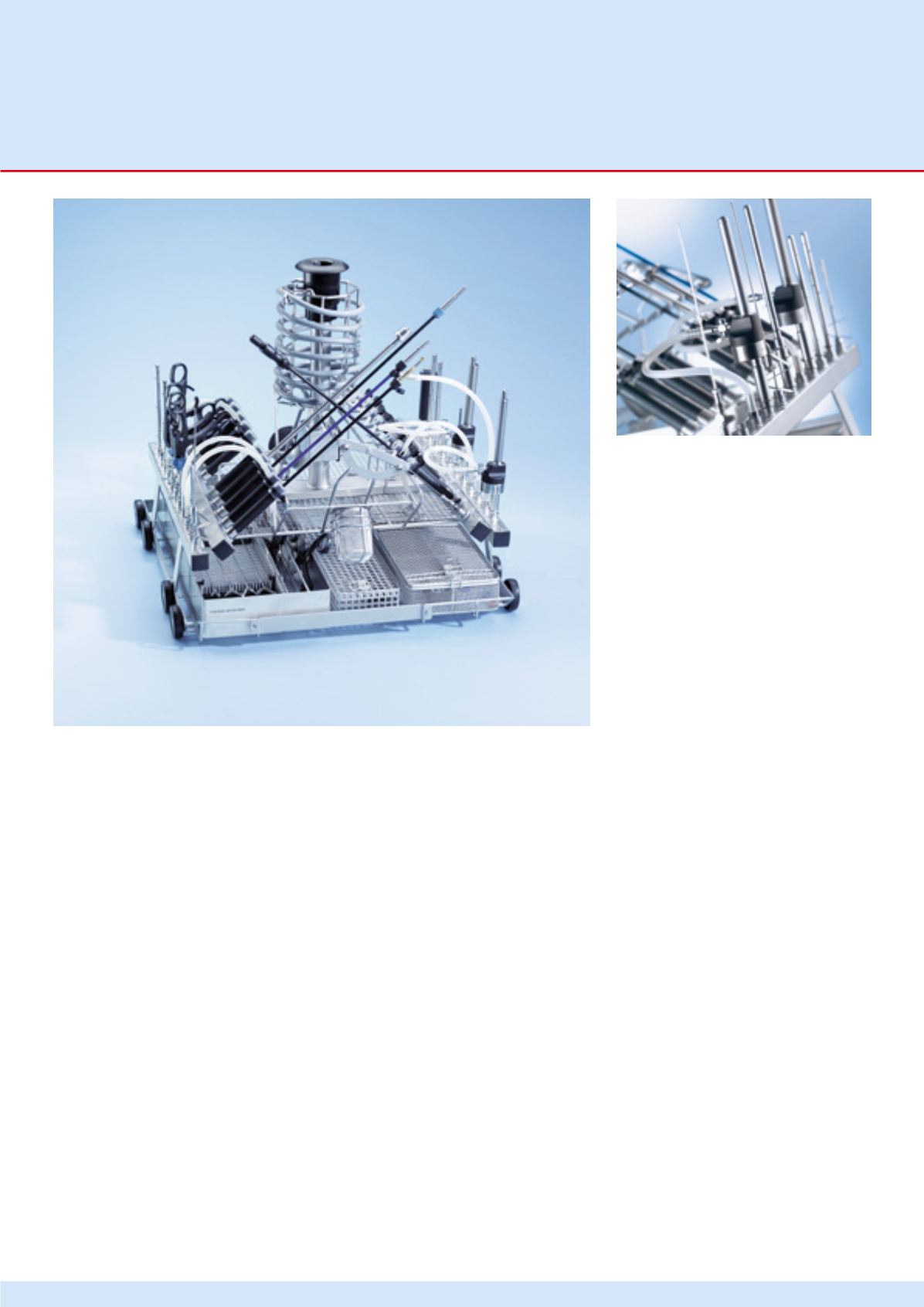

Injector rail on E 450/1
Minimally invasive surgical instruments
Scope of delivery:
3 x E 336 irrigation sleeves, 121 mm
2 x E 362 blanking screws
15 x E 442 irrigation sleeves, 121 mm,
for MIS instruments, 4-8 mm
5 x E 443 irrigation sleeves, 121 mm,
for MIS instruments, 8-12 mm
1 x E 445, 12 caps
for irrigation sleeves, 6 mm
1 x E 446, 12 caps
for irrigation sleeves, 10 mm
3 x E 447 female adapters,
for male LuerLock
6 x E 448 silicone hose
300 mm, 5 x 1.5 mm with male
LuerLock adapter
5 x E 449 male adapter,
for female LuerLock
1 x E 451 1/6 mesh insert, with lid
3 x E 452 injector nozzles, 2.5 x 60 mm
8 x E 453 injector nozzles,
4.0 x 110 mm with spring support
6 x E 454 injector nozzles for trocar
sleeves, 10-15 mm
4 x E 456 spring stays for MIS instruments,
e.g. scissors, forceps, etc.
3 x E 464 sleeves for E 454 injector nozzles
2 x E 472 spring clip for injector nozzle,
Ø 4.0 mm
