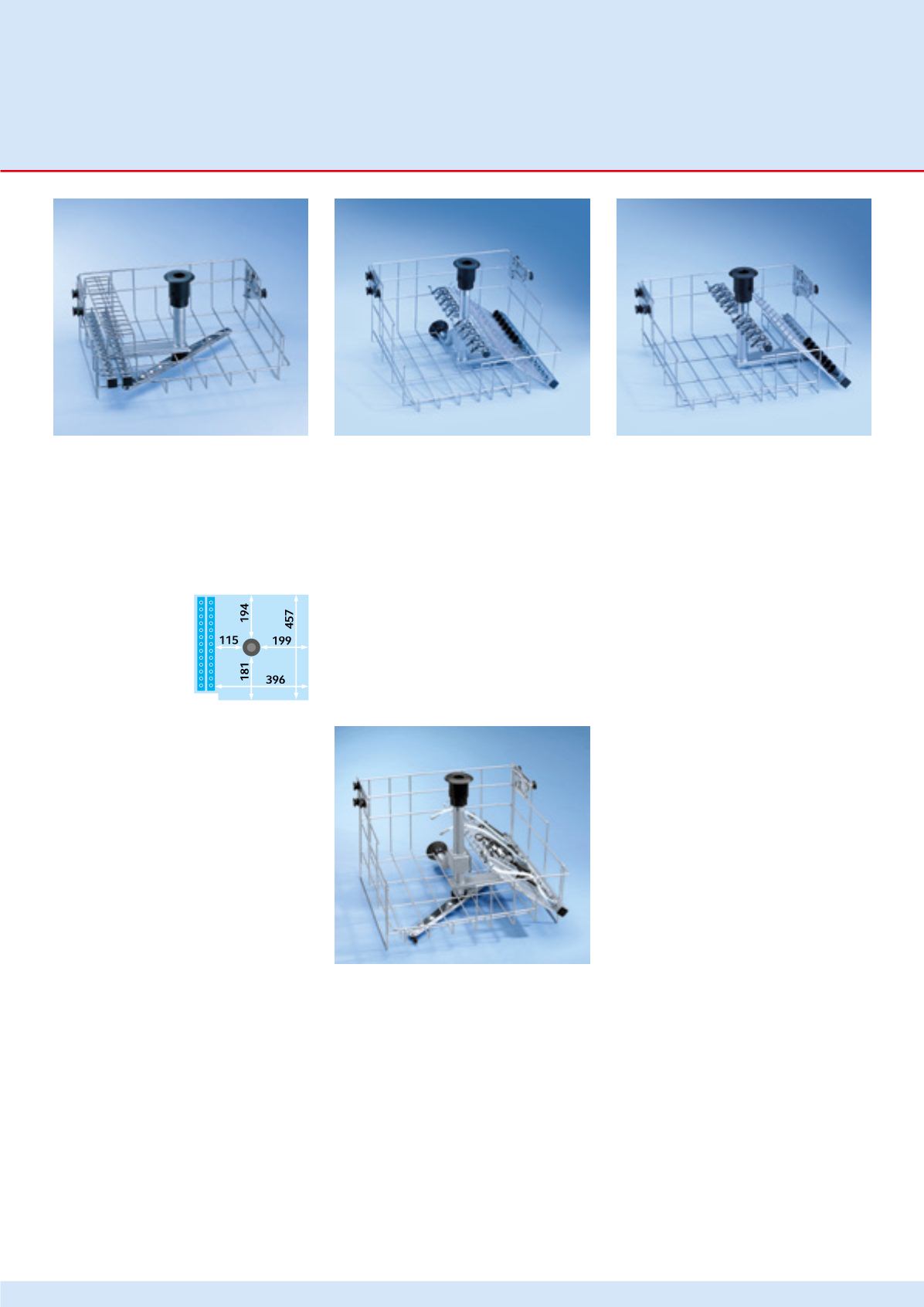

O 177/1 upper basket/injector unit
• Built-in spray arm
• Right-hand side free for inserts
• Left-hand side with 26 silicone adapters:
26 nozzles Ø 4 mm, L 30 mm, 7 funnels
supplied, with height-adjustable rack
• Vertical clearance
230/205 mm
• Height adjustment
range + 20/+ 40 mm
• H 263, W 498,
D 455 mm
O 183 upper basket/injector unit
• For instruments from minimally invasive
surgery, arthroscopy, urology
• Left side free for inserts
Vertical clearance 285 +/–20 mm,
10 injector nozzles
• Right side for lumened instruments
max. length 370 +/– 30 mm,
14 injector nozzles/funnels
Powder dispensing not possible
Upper baskets/injector units
for washer-disinfectors
G 7862, PG 8535, PG 8536
O 176 upper basket/injector unit TA
• For instruments from minimally invasive
surgery, arthroscopy, urology
• Left-hand side free for inserts
Vertical clearance 360 mm,
10 injector nozzles
• Right-hand side for lumened instruments
max. length 500 mm
14 injector nozzles/funnels
• Connection for hot-air drying unit
Powder dispensing not possible
O 176/1 upper basket/injector unit with
drying connector
• For instruments from minimally invasive
surgery, arthroscopy, urology
• 10 receptacles
• Built-in spray arm with magnetic tip
• Note: Magnet for spray arm sensors on
PG 8535, PG 8536
• Left-hand side free for inserts
• Right-hand side for lumened instruments,
max. length 500 mm
• Vertical clearance 360 mm
• Connection for hot-air drying unit
O 176/1 supplied as standard with:
2 x spray nozzles Ø 2.5 mm
4 x spray nozzles Ø 4 mm
4 x funnels
2 x E 442 irrigation sleeves
2 x E 448 silicone hoses
1 x E 452 injector nozzle
1 x E 453 injector nozzle
1 x E 454 injector nozzle
