Miele washer-disinfectors:
Quality, inside and out

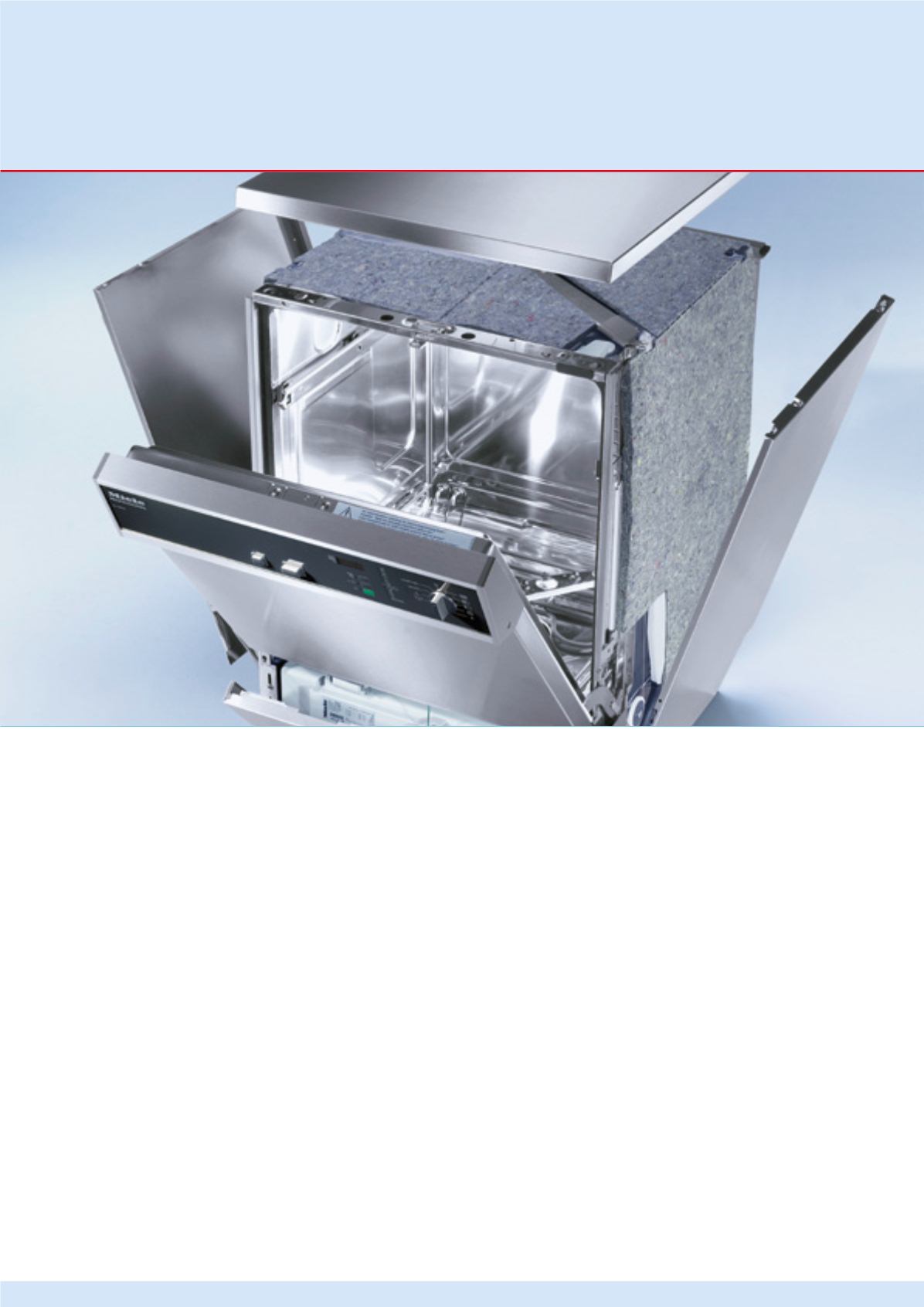

High-quality design
In designing these machines, Miele used
choice, durable and robust materials.
This results in rugged and particularly
maintenance-free machines able to cope
with the rough and tumble of everyday
working life.
• Double-skinned design, insulated door
for excellent soundproofing
• Chamber and pipework made from high-
grade stainless steel
• Fibre-reinforced hoses
Cleaning technology
• Hygienic freshwater system with fresh
water intake in each programme stage
• 2 spray arms (third spray arm on
upper basket) for thorough cleaning of
instrument surfaces
• Perfect arrangement of nozzles and
regulatable spray arm speed
• Injector system for thorough cleaning of
lumens
• Direct docking of mobile units and
baskets to water circuit
Standard technical specifications
• Profi Monobloc water softener,
reactivation internalised into programme
cycle, low salt consumption
• Powerful circulation pump, max.
throughput 400 l/min
• 4-fold filtration system comprising
surface filter, strainer, coarse filter and
micro-fine filter
• Efficient steam condenser as heat-
exchanger to minimise steam discharge
• Flowmeter to monitor water intake
quantities
• Door dispenser for powder cleaning
agent
• Connection options for liquid dispensing
systems
• Integrated dispenser flow control
Design
• Freestanding or undercounter unit
Interfaces
• Serial interface for process
documentation
• Optical interface for service
Safety features
• Electric door lock
• Programme recontinuation in event of
power outage
• Optical and acoustic signal at end of
programme
• 2 sensors for redundant monitoring and
control of process temperature
• Port for simple positioning of sensors in
the wash cabinet for process validation
• Safety features according to EN ISO
15883 / AS4187 and AS2945
