KM 3054 G
1. Front
2. Building-in depth
3. Mains connection box with mains connection cable
L = 2,000 mmm
4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
CombiSets
The final space requirements
for any gas connection
should be checked with a
licensed gas fitter,
in order to conform to local
and national regulations
CS 1234-1 I
1. Front
2. Building-in depth
3. Mains connection box with mains connection cable,
L = 1,440 mm

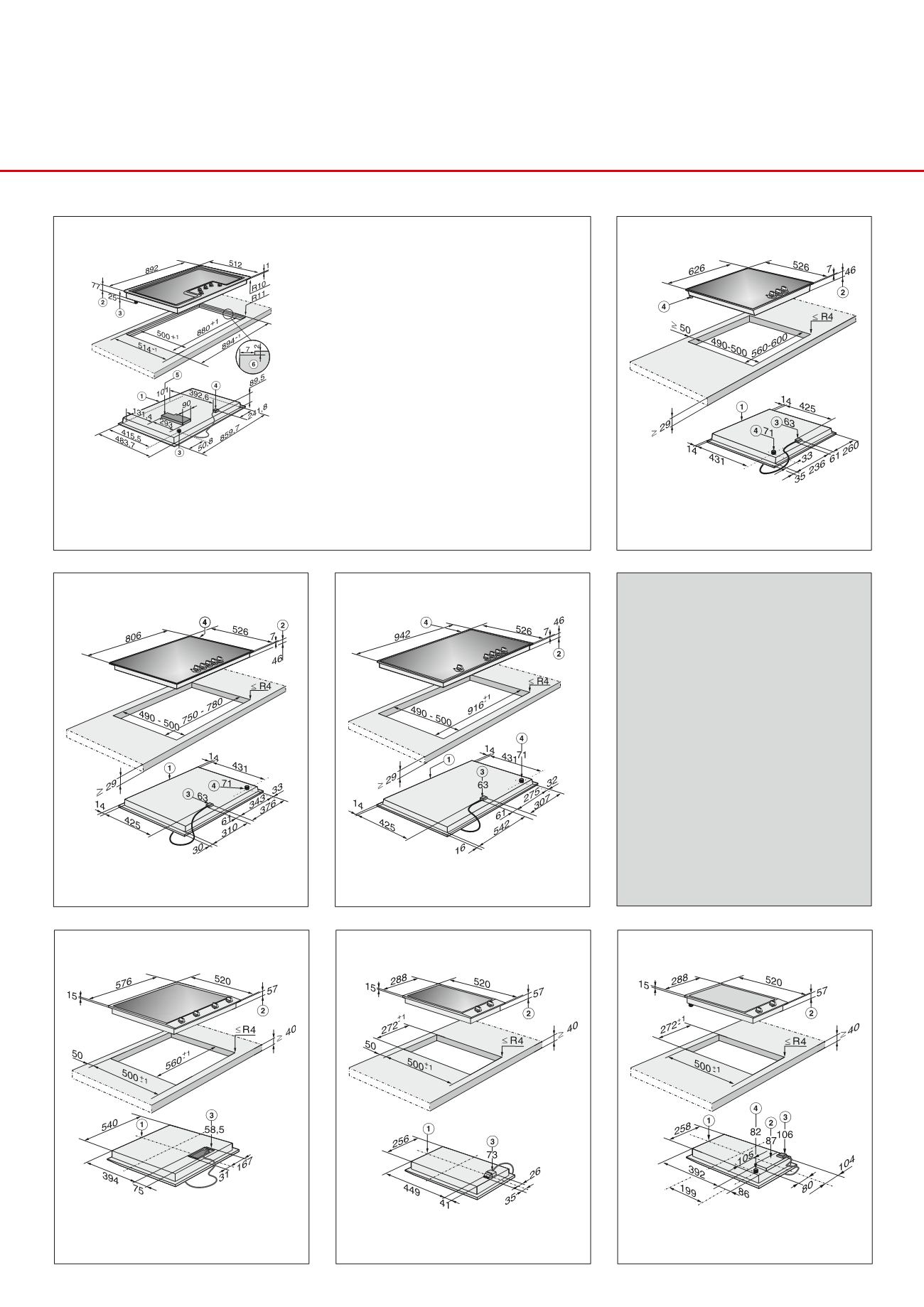

Installation drawings
CS 1013 G
1. Front
2. Height for building in
3. Mains connection box with cable, 2000 mm long
4. Gas connection R 1/2 - ISO 7-1 (DIN EN 2999)
CS 1212-1 I
1. Front
2. Building-in depth
3. Mains connection box with mains connection cable,
1,440 mm
KM 3034 G
1. Front
2. Building-in depth
3. Mains connection box with mains connection cable
L = 2,000 mmm
4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
KM 3014 G
1. Front
2. Building-in depth
3. Mains connection box with mains connection cable
L = 2,000 mmm
4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
KM 2357 G
1. Front,
2. Building-in depth,
3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226),
4. Mains connection box with mains connection
cable, L = 2,000 mm,
5. Electronics housing - max. building-in depth,
including electronics housing, 101 mm,
5. Stepped cut-out for granite or marble worktops, ,
Building-in information:, Flush fit cooktops are
only suitable for installation in granite, marble, or
tiled worktops., For all other worktop materials,
consult the worktop manufacturer whether it can
be used with a flush-fit cooktop., As the appliance
and the worktop cut-out have a certain
dimensional tolerance, gap can vary.
